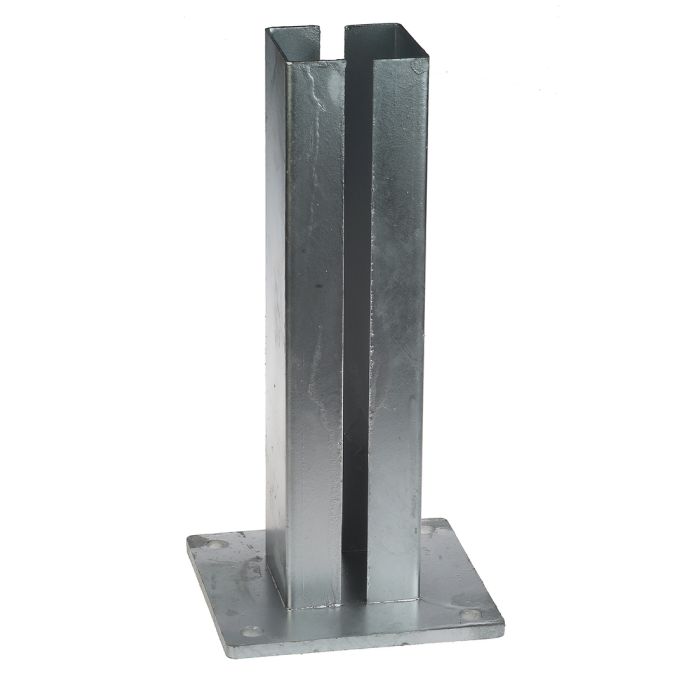

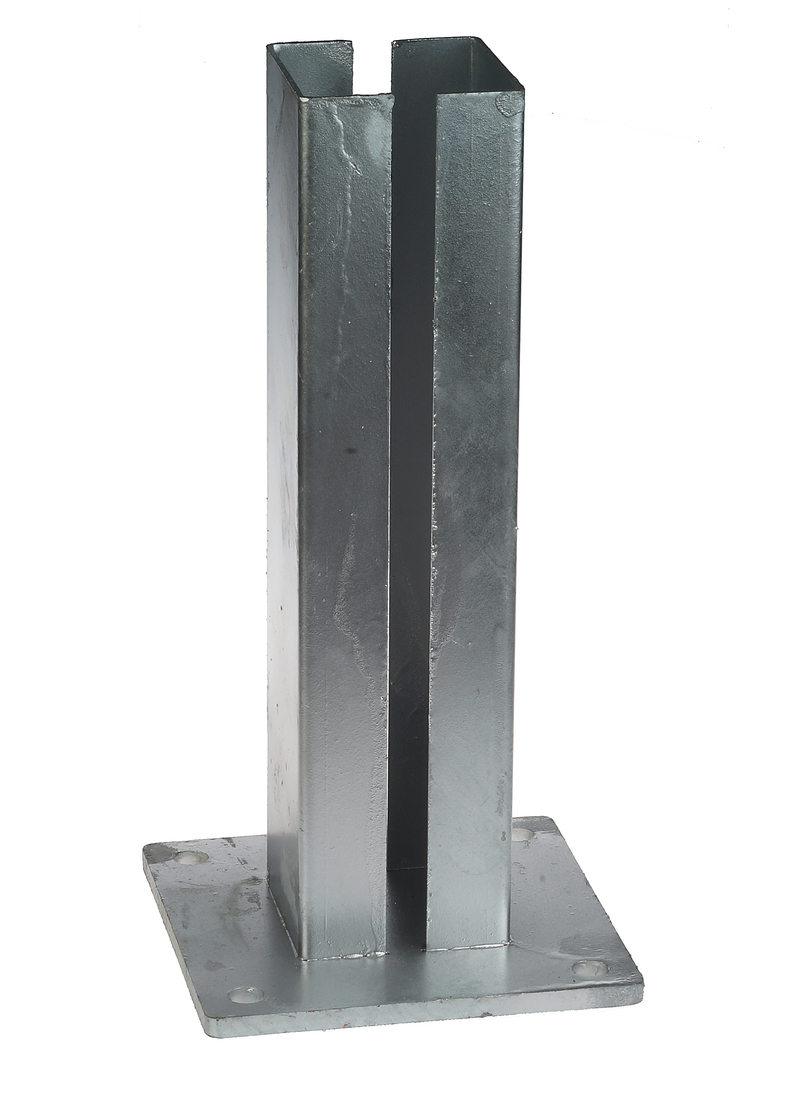

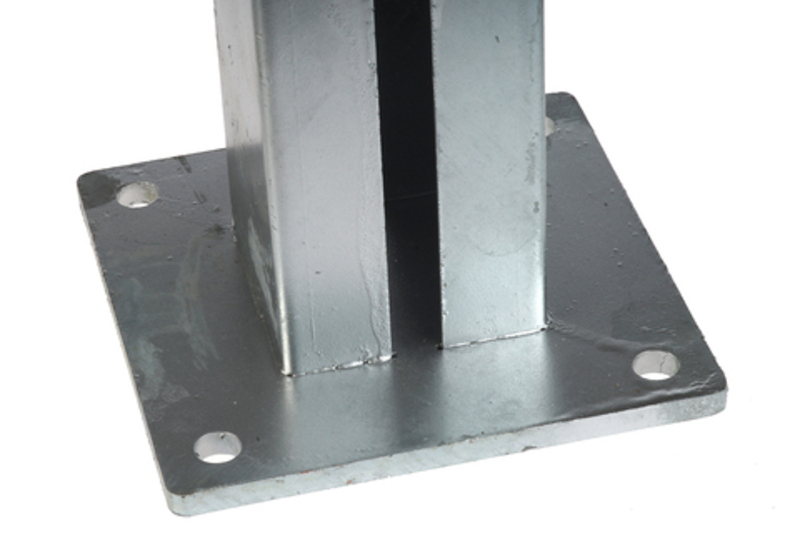

Base plate for 80 × 80 mm box section hot-dip galvanised. Standard version suitable for fixing 80 × 80 mm box sections to solid surfaces such as concrete or stone. A welded upright guide with 2 mm wall thickness ensures stable positioning. The mounting plate measures 150 × 150 mm and is made from 8 mm thick hot-dip galvanised steel. This finish provides extended corrosion protection in outdoor conditions.
The structure includes a flat steel plate with pre-drilled holes and a central upright adapter. The box section slides over the adapter and is fixed securely in place. Used in fencing, gates, barriers, and other permanent outdoor steel constructions.
Dimensions: 80 mm × 80 mm profile, 150 × 150 mm mounting plate, 8 mm thick steel, 2 mm adapter wall. Available only in fully hot-dip galvanised version. Other colour options are not available for this model.
The galvanised finish provides weather protection and preserves mechanical strength during long-term use. Material thickness supports structural loading in demanding installations.
Supplied in packs of 8 units (VPE 8), suitable for both new projects and replacements. This version combines robust construction, reliable installation and weather resistance.
Applications:
Base plate 80 × 80 mm delivers structural strength, mounting stability and engineered design for permanent use.
