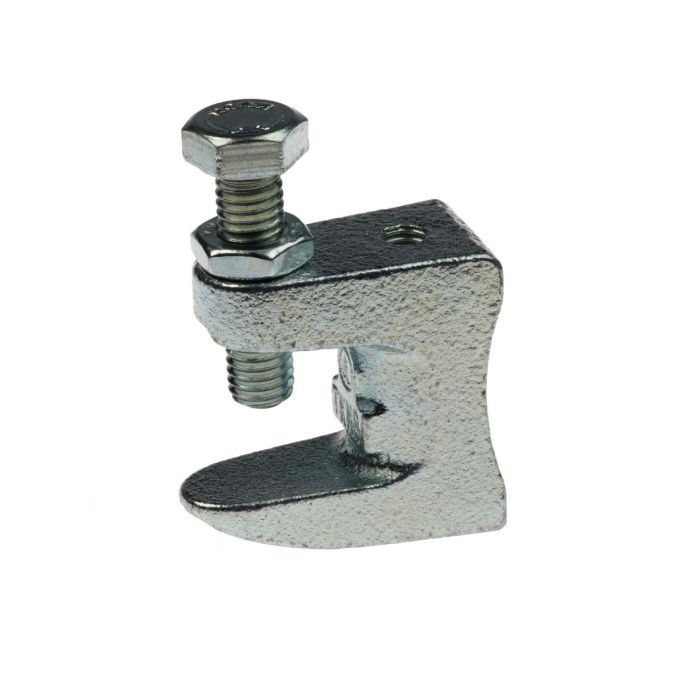

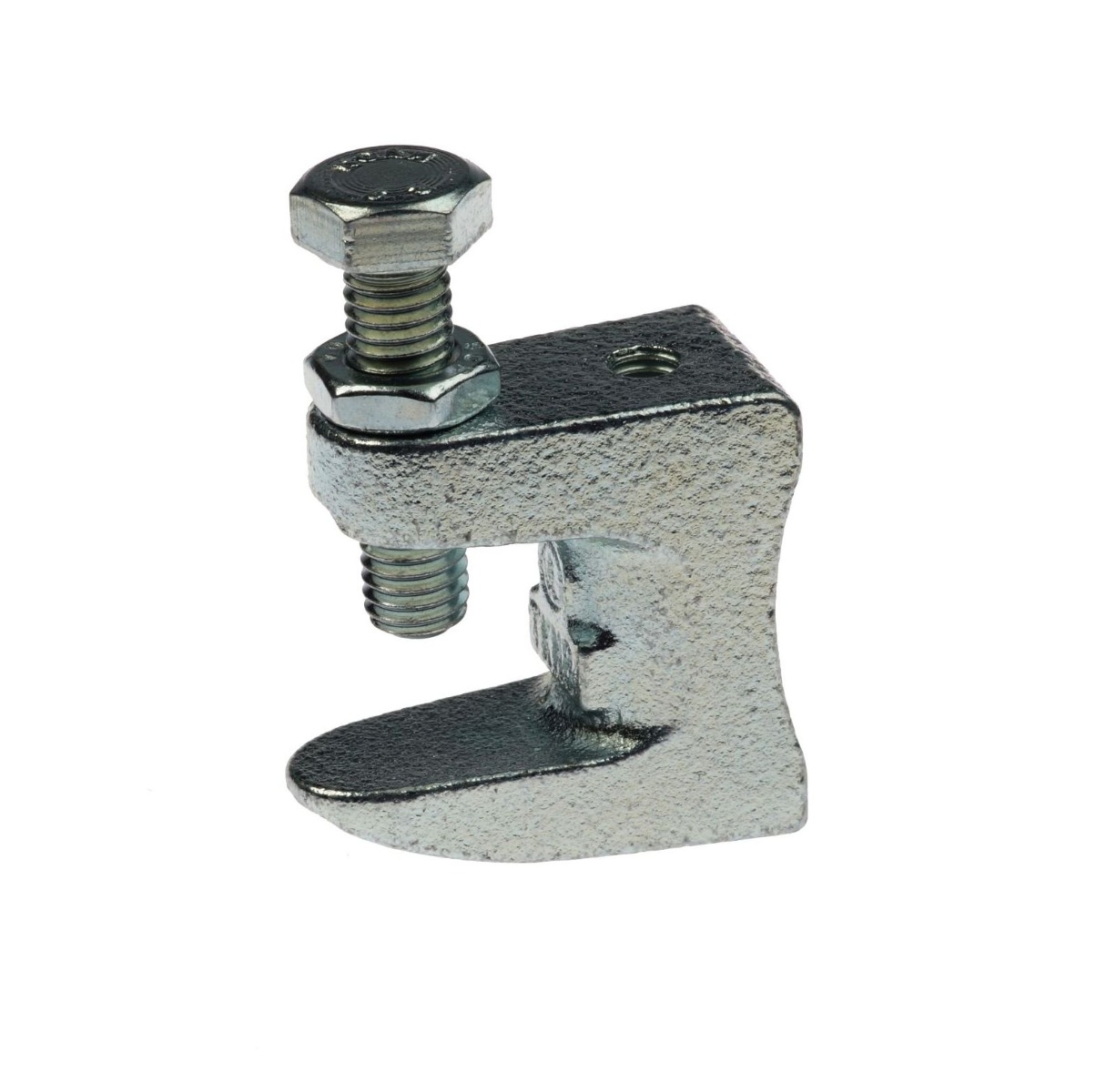

Beam Clamp, inspected zinc plated

SKU

6003006G

This cast iron Beam Clamp is available in several variations. All these beam clamps are zinc plated and are available in thread sizes M6, M8, M10, M12 and M16. The beam clamp is also available with inner thread. The clamps without inner thread have a hole of 9, 11 or 13 millimeters.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Grouped product items
Item #	Opening	Base Material	Thread Size	Finish	VPE

6003912	5 - 26 mm	Cast Iron	⌀ 13 mm	Zinc Plated	50
6003910	0 - 20 mm	Cast Iron	⌀ 11 mm	Zinc Plated	50
6003908	0 - 23 mm	Cast Iron	⌀ 9 mm	Zinc Plated	50
6003310					20
6003016	0 - 28 mm	Cast Iron	M16	Zinc Plated	50
6003012	5 - 26 mm	Cast Iron	M12	Zinc Plated	25
6003010	0 - 20 mm	Cast Iron	M10	Zinc Plated	50
6003008	5 - 18 mm	Cast Iron	M8	Zinc Plated	50
6003006	5 - 18 mm	Cast Iron	M6	Zinc Plated	50
