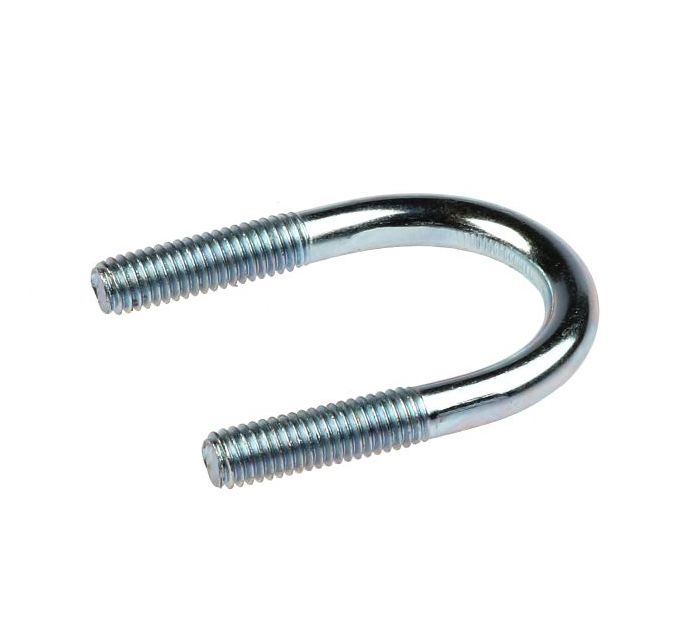

Electrolytically zinc-plated U-bolt (wire clamp)

SKU

6634045G

Robust U-bolt (wire clamp) in electrolytically zinc-plated steel for secure fixing of tubes, plates and components to greenhouse frames, service rails and brackets. The smooth zinc finish provides practical, day-to-day corrosion protection and is best suited to indoor or covered applications away from persistent moisture or acidic atmospheres. :contentReference[oaicite:0]{index=0}

Available across a wide range of sizes and threads to match typical round tube dimensions and construction details (thread sizes M6/M8/M10; heights from compact to long reach; nominal tube sizes from ½″ up to 3″). Combine with washers and, where required, backing plates for a clean, load-spreading installation. :contentReference[oaicite:1]{index=1}

Key features

Electrolytic zinc plating: clean, uniform coating for covered indoor use. :contentReference[oaicite:2]{index=2}
Versatile format: U-bolt geometry grips round tube, channel or flat components.
Broad size range: M6, M8, M10 threads and multiple heights/diameters for ½″–3″ tube. :contentReference[oaicite:3]{index=3}
Fast assembly: fits standard nuts, washers and optional backing plates.
Multi-sector: greenhouse structures, signage, building services and general fabrication.

Typical applications

Clamping round tube to frames, rails and purlins.
Fixing mounting plates, trays and accessories to posts or beams.
Signage, cable/pipe supports and light service brackets.

Installation guidance

Select the correct thread/height for the tube OD; use flat and spring/lock washers as appropriate.
Tighten nuts evenly to avoid skew; re-torque after thermal/load cycles.
Protect the zinc finish; avoid grinding/cutting near the fitted assembly.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Grouped product items
Item #	Thread Size	Bolt Height	Diameter A	Finish	VPE

6634045	M6	45 mm	½" (21,3 mm)	Zinc Plated	100
6634052	M6	52 mm	½" (21,3 mm)	Zinc Plated	100
6634060	M6	60 mm	½" (21,3 mm)	Zinc Plated	100
6634070	M6	70 mm	½" (21,3 mm)	Zinc Plated	100
6634075	M6	75 mm	½" (21,3 mm)	Zinc Plated	100
6635045	M6	45 mm	¾" (26,9 mm)	Zinc Plated	100
6635052	M6	52 mm	¾" (26,9 mm)	Zinc Plated	100
6636045	M6	45 mm	1" (33,7 mm)	Zinc Plated	100
6636060	M6	60 mm	1" (33,7 mm)	Zinc Plated	100
6834045	M8	45 mm	½" (21,3 mm)	Zinc Plated	100
6834052	M8	52 mm	½" (21,3 mm)	Zinc Plated	100
6834060	M8	60 mm	½" (21,3 mm)	Zinc Plated	100
6834075	M8	75 mm	½" (21,3 mm)	Zinc Plated	100
6835045	M8	45 mm	¾" (26,9 mm)	Zinc Plated	100
6835052	M8	52 mm	¾" (26,9 mm)	Zinc Plated	100
6835060	M8	60 mm	¾" (26,9 mm)	Zinc Plated	100
6835070	M8	70 mm	¾" (26,9 mm)	Zinc Plated	100
6835075	M8	75 mm	¾" (26,9 mm)	Zinc Plated	100
6835090	M8	90 mm	¾" (26,9 mm)	Zinc Plated	100
6836052	M8	52 mm	1" (33,7 mm)	Zinc Plated	100
6838100	M8	100 mm	1½" (48,3 mm)	Zinc Plated	100
6937070					0
6938075	M10	75 mm	1½" (48,3 mm)	Zinc Plated	100
6931135	M10	135 mm	3" (88,9 mm)	Zinc Plated	100
6930110	M10	110 mm	2½" (76,1 mm)	Zinc Plated	100
6930120	M10	120 mm	2½" (76,1 mm)	Zinc Plated	100
6931145	M10	145 mm	3" (88,9 mm)	Zinc Plated	100
6837075	M8	75 mm	1¼" (42,4 mm)	Zinc Plated	100
6938120	M10	120 mm	1½" (48,3 mm)	Zinc Plated	100
6836110	M8	110 mm	1" (33,7 mm)	Zinc Plated	100
6837070	M8	70 mm	1¼" (42,4 mm)	Zinc Plated	100
6836090	M8	90 mm	1" (33,7 mm)	Zinc Plated	100
6836075	M8	75 mm	1" (33,7 mm)	Zinc Plated	100
6838075	M8	75 mm	1½" (48,3 mm)	Zinc Plated	100
6838085	M8	85 mm	1½" (48,3 mm)	Zinc Plated	100
6837060	M8	60 mm	1¼" (42,4 mm)	Zinc Plated	100
6836060	M8	60 mm	1" (33,7 mm)	Zinc Plated	100
6839080	M8	80 mm	2" (60,3 mm)	Zinc Plated	100
6839085	M8	85 mm	2" (60,3 mm)	Zinc Plated	100
6839095	M8	95 mm	2" (60,3 mm)	Zinc Plated	100
6839100	M8	100 mm	2" (60,3 mm)	Zinc Plated	100
6839110	M8	110 mm	2" (60,3 mm)	Zinc Plated	100
6839120	M8	120 mm	2" (60,3 mm)	Zinc Plated	100
6830110	M8	110 mm	2½" (76,1 mm)	Zinc Plated	100
6838110	M8	110 mm	1½" (48,3 mm)	Zinc Plated	100
6830120	M8	120 mm	2½" (76,1 mm)	Zinc Plated	100
6830140	M8	140 mm	2½" (76,1 mm)	Zinc Plated	100
6936060	M10	60 mm	1" (33,7 mm)	Zinc Plated	100
6937075	M10	75 mm	1¼" (42,4 mm)	Zinc Plated	100
6937080	M10	80 mm	1¼" (42,4 mm)	Zinc Plated	100
6938100	M10	100 mm	1½" (48,3 mm)	Zinc Plated	100
6938085	M10	85 mm	1½" (48,3 mm)	Zinc Plated	100
6939090	M10	90 mm	2" (60,3 mm)	Zinc Plated	100
6939100	M10	100 mm	2" (60,3 mm)	Zinc Plated	100
6939110	M10	110 mm	2" (60,3 mm)	Zinc Plated	100
6939120	M10	120 mm	2" (60,3 mm)	Zinc Plated	100
6939150	M10	150 mm	2" (60,3 mm)	Zinc Plated	100
6836070	M8	70 mm	1" (33,7 mm)	Zinc Plated	100
6837090	M8	90 mm	1¼" (42,4 mm)	Zinc Plated	100
6939085	M10	85 mm	2" (60,3 mm)	Zinc Plated	100
6939080	M10	80 mm	2" (60,3 mm)	Zinc Plated	100
6931110	M10	110 mm	3" (88,9 mm)	Zinc Plated	100
6931120	M10	120 mm	3" (88,9 mm)	Zinc Plated	100
6635070					0
