Base plate short version for 60 × 40 mm box section hot-dip galvanised. The compact configuration provides secure attachment of 60 × 40 mm box sections to solid surfaces such as concrete or stone. Precise alignment is achieved using the upright guide, while a height of 150 mm allows installation in limited space conditions. The hot-dip galvanised coating ensures durable corrosion protection for permanent outdoor applications.

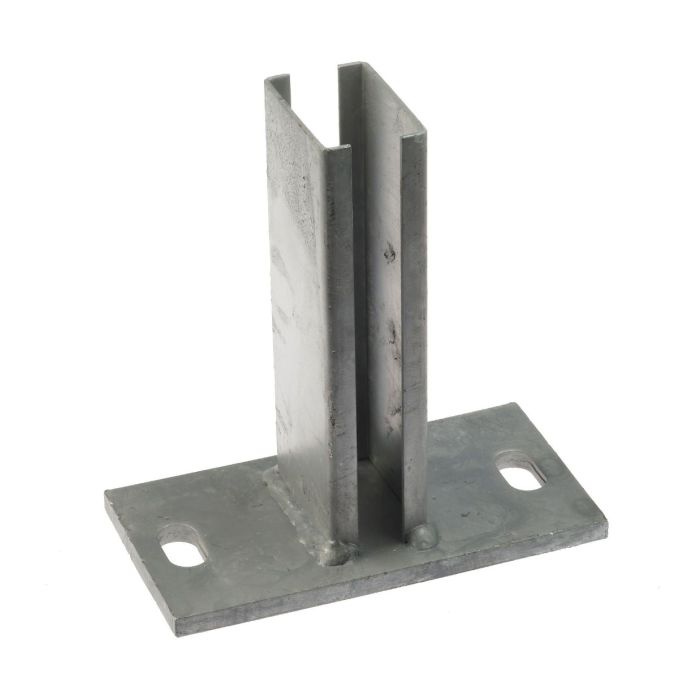

This component consists of a flat steel mounting plate with two pre-drilled holes and a welded vertical guide. Positioning is achieved by sliding the box section over the upright element, creating a stable and locked assembly. Use cases include fencing, gate structures, enclosures, and other compact steel systems requiring strong anchoring.
Dimensions measure 60 mm in length, 40 mm in width, and 150 mm in height. In addition to the standard galvanised version, powder-coated variants are offered in the following RAL colours:
The standard version is hot-dip galvanised according to industry specifications. Powder-coated models feature an additional surface layer for enhanced weather resistance and colour matching with surrounding structures. Mechanical properties remain unchanged.
Each unit is supplied in packs of 10 pieces (VPE 10). Designed for both new installations and replacements, the short variant provides a compact solution for reliable and efficient mounting.
Applications:
The short version combines structural strength, precise positioning, and compact execution. Available RAL colours support technical and visual integration in diverse environments.
