T-Clamp (2 Part) TJ 210 hot-dip galvanised

SKU

2101855G

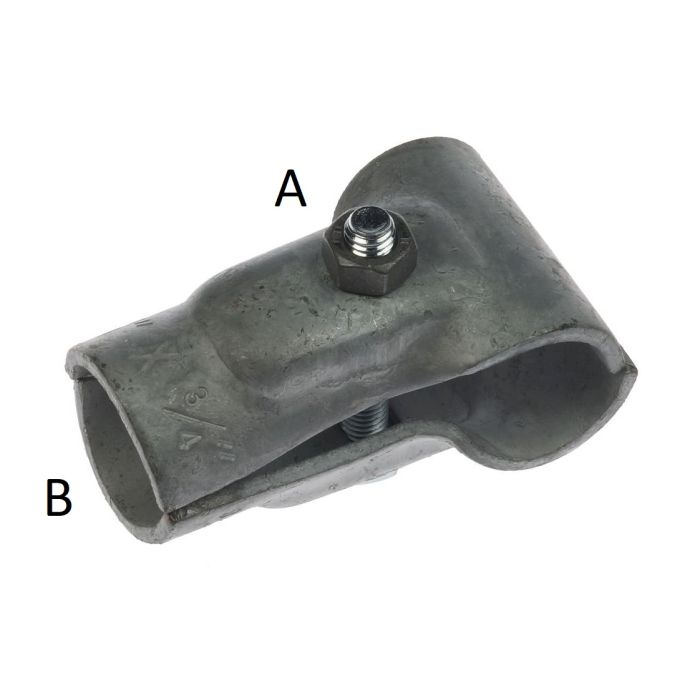

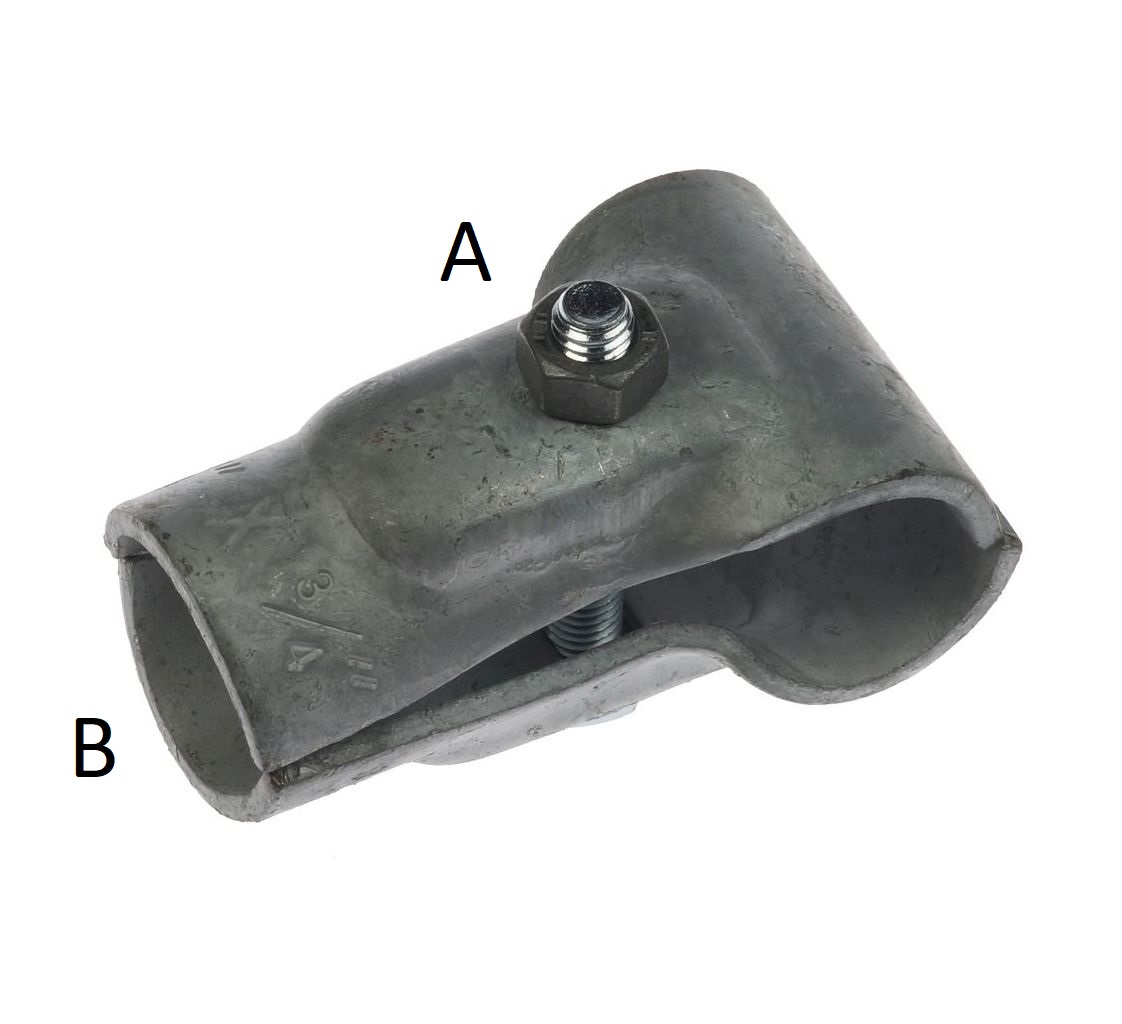

This 2-part T-clamp is hot-dip galvanized and is coming without bolts and nuts. In the dimensions in the illustration, A is the size for the continuous pipe, size B is for the right angle pipe. The T-clamp is available for several pipe diameters. The t-clamps come without bolts and nuts. The bolts and nuts can be ordered separately.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Grouped product items
Item #	Base Material	Diameter A	Diameter B	Finish	VPE

2101844	Press Metal	½" (21,3 mm)	½" (21,3 mm)	Hot-dip Galvanized	25
2101855	Press Metal	¾" (26,9 mm)	¾" (26,9 mm)	Hot-dip Galvanized	50
2101865	Press Metal	1" (33,7 mm)	¾" (26,9 mm)	Hot-dip Galvanized	50
2101866	Press Metal	1" (33,7 mm)	1" (33,7 mm)	Hot-dip Galvanized	50
2101876	Press Metal	1¼" (42,4 mm)	1" (33,7 mm)	Hot-dip Galvanized	50
2101886	Press Metal	1½" (48,3 mm)	1" (33,7 mm)	Hot-dip Galvanized	25
2101896	Press Metal	2" (60,3 mm)	1" (33,7 mm)	Hot-dip Galvanized	25
2101908	Press Metal	2½" (76,1 mm)	1½" (48,3 mm)	Hot-dip Galvanized	20
2101977	Press Metal	1¼" (42,4 mm)	1¼" (42,4 mm)	Hot-dip Galvanized	25
2101987	Press Metal	1½" (48,3 mm)	1¼" (42,4 mm)	Hot-dip Galvanized	25
2101988	Press Metal	1½" (48,3 mm)	1½" (48,3 mm)	Hot-dip Galvanized	25
2101989	Press Metal	1½" (48,3 mm)	2" (60,3 mm)	Hot-dip Galvanized	20
2101997	Press Metal	2" (60,3 mm)	1¼" (42,4 mm)	Hot-dip Galvanized	25
2101998	Press Metal	2" (60,3 mm)	1½" (48,3 mm)	Hot-dip Galvanized	25
2101999	Press Metal	2" (60,3 mm)	2" (60,3 mm)	Hot-dip Galvanized	20
2101909	Press Metal	2½" (76,1 mm)	2" (60,3 mm)	Hot-dip Galvanized	20
